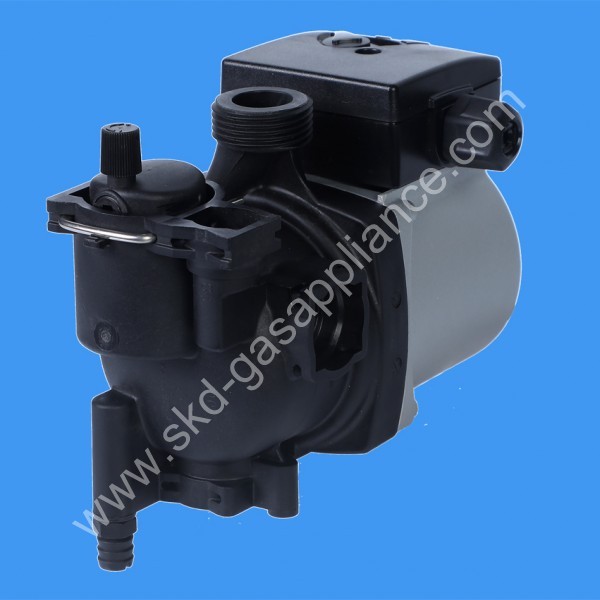

Gas Boiler Circulating Pump 108

Application

• Gas wall hung boiler system,heating system, cooling system and so on.

• Transfer the electrical energy to hydraulic pressure.

• Conduct the heating water.

• Drain out the air from HW system.

Working condition

• Voltage=230V, Frequency=50Hz, Different voltage and frequency are available according to customer‘s requirement.

• Ambient temperature: 0°C~40°C, relative humidity: <95%, liquid temperature: 20°C~85°C.Ambient temperature must below liquid temperature.

• Circulating liquid: thin, clean, non-corrosive & non-explosive liquids, and without any solid particles, fibers or mineral oil.

• Operation without liquid is forbidden.

• Maximum system pressure is 3bar. To avoid NHP damage to the bearing of pump, pumps should be maintained the minimum pressure below:

Structural diagram

Drawing
