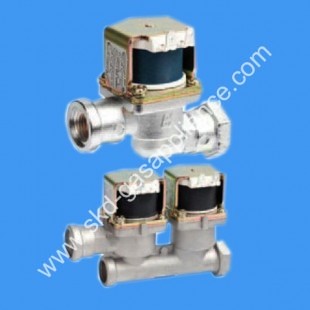

Gas solenoid valve 24V
Gas solenoid valve 24V detailed description:
| Rated voltage | 24V DC |
| Work travel | 2.5±0.2mm |
| Spring load | ≥120g (Sealing valve) |
| Operation voltage of open valve | 8V-27V(Pressurizing 10kPa) |
| Closed valve release voltage | ＞1.2V DC |
| insulation resistance | ＞100MΩ |
| External leakage | ＜20mL/h (Pressurizing 10kPa) |
| Internal leakage | ＜30mL/h (Pressurizing 4.2kPa) |
| Apply to | gas water heater |
| Usage life | 300,000 times |
Gas solenoid valve production line:
Gas solenoid valve testing:
Our services:
1) Each Gas solenoid valve will be tested in the production line before packing.
2) Sample can be offered for you inspection.(Samples can be prepared in 7-15 days)
3) Our package is situable for Sea and Air transportation.
We can offer a wide range of products, including gas pressure regulator, ceramic electrode (spark plug), thermocouple, air pressure switch, gas valve, ODS & pilot burner assembly, exhaust pipe, die, piezo igniter, 3-way Actuator, hydraulic group, flow sensor, 3-Bar safety valve, pressure gauge, water pressure switch, water flow switch, sparker, pulse controller, piezo cable, pulse igniter, blade Burner and so on...
